Rotary Encoders

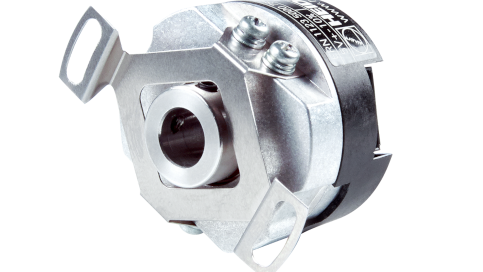

35 mm series
| Bearing | Measuring Method | Shaft / Mounting diameter | |
|---|---|---|---|
| With integral bearing | Incremental | Solid shaft / 6 mm | |
| With integral bearing | Incremental | Blind hollow shaft / 8 mm | |
| With integral bearing | Incremental | Thorough hollow shaft / 8 mm |

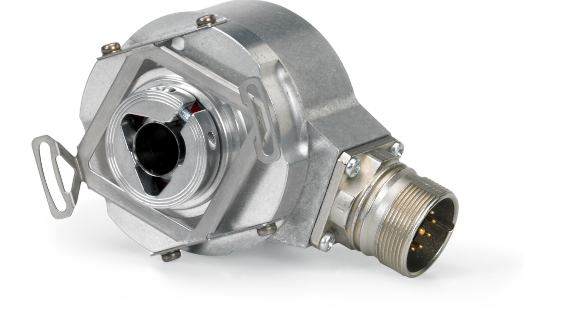

56 mm series
| Bearing | Measuring method | Shaft / Mounting diameter | |
|---|---|---|---|
| With integral bearing | Incremental | 8 mm | |
| ERN 1300 IRH5 Series | With integral bearing | Incremental | 8 mm |

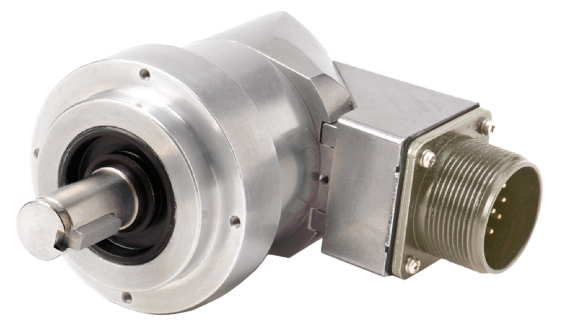

66 mm series
| Bearing | Measuring method | Shaft diameter | |
|---|---|---|---|
| With integral bearing | Incremental | 15 mm |

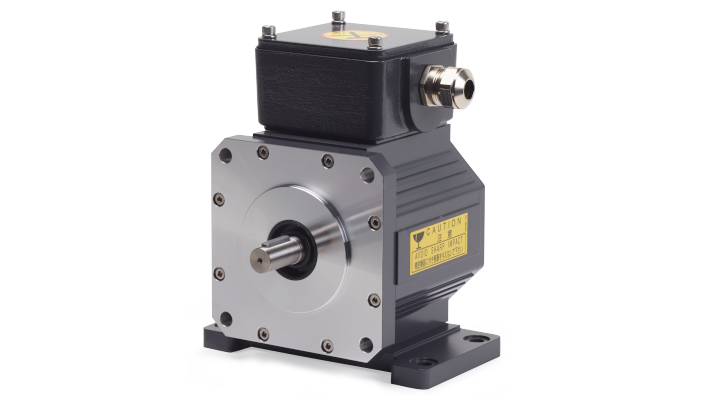

120 mm
| Bearing | Measuring method | Shaft diameter | |
|---|---|---|---|
ROD 1900 | With integral bearing | Incremental | 15 mm |
Electronic Handwheel
| Bearing | Measuring method | ||
|---|---|---|---|
| With integral bearing (with mechanical detent) | Incremental |
